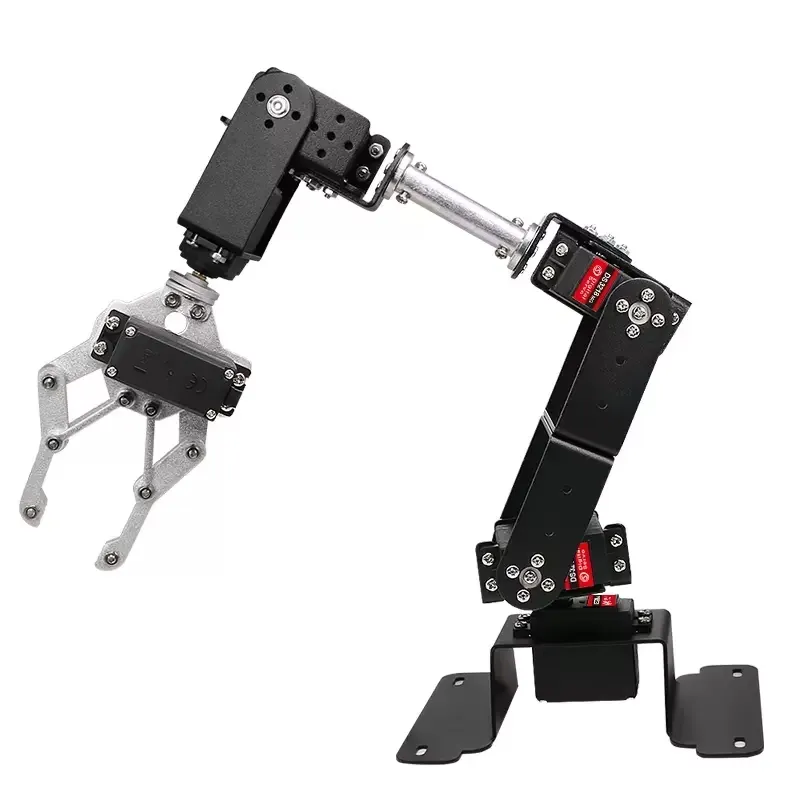

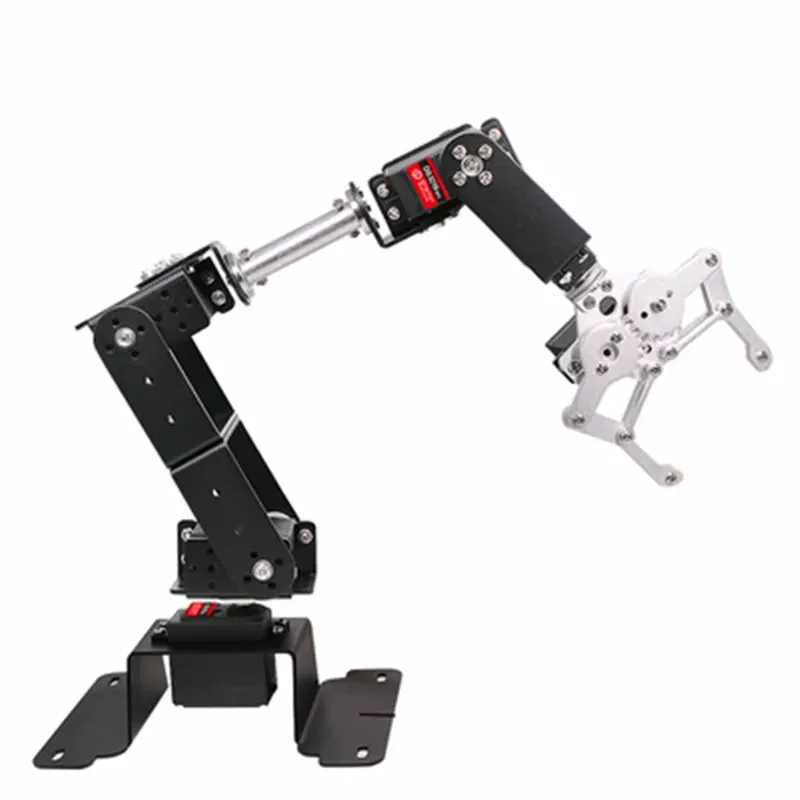

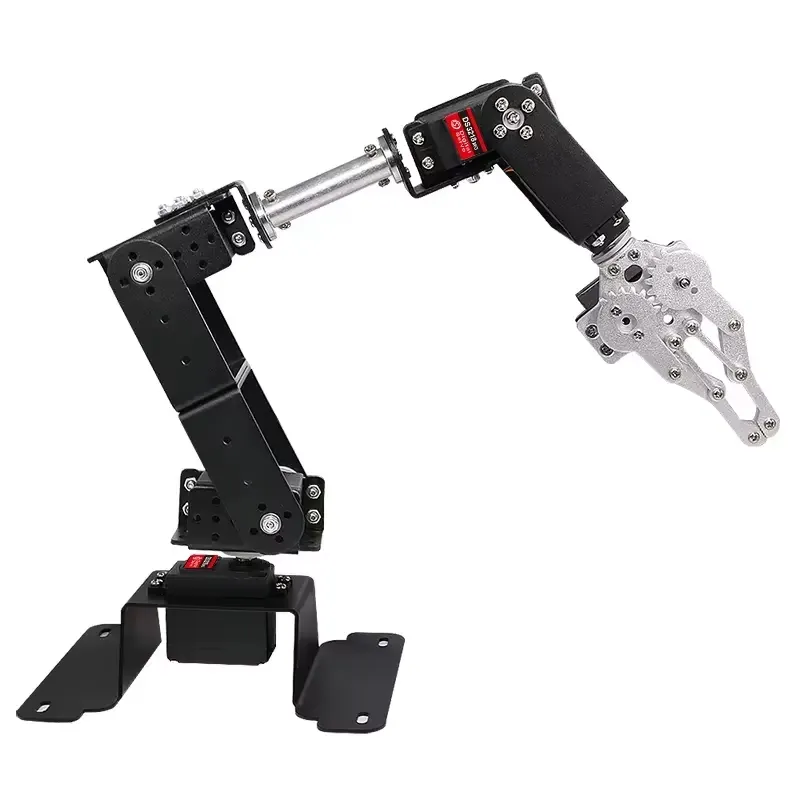

Advanced 6 DOF Robotic Arm Manipulator with MG996 Metal Alloy Clamp Claw – Perfect DIY Kit for Arduino, UNO, and ESP32 Robots

6 DOF Robot Manipulator with MG996 Metal Alloy Clamp Claw

Features

🤖 High Precision Control

• Model: MG996R with metal gears for stable and shock-proof performance.
• Stall Torque: 12kg/cm (6V).

🔧 Versatile Operation

• Power Supply: External adapter.
• Operating Voltage: 4.8 – 7.2 V.
• Temperature Range: 0°C to 55°C.
• Operating Speed: 0.17 sec / 60 degrees (4.8V no load), 0.13 sec / 60 degrees (6.0V no load).
• Rotation Angle: 90~180 degrees.

📦 Compatibility

• Compliant with standard receiver connectors: Futaba, Hitec, Sanwa, GWS.
• Suitable for trucks, boats, racing cars, helicopters, and airplanes.

DS3218 Main Parameters

• Voltage: 5-6.5V.
• Stop-turn Current: 2A.
• Controllable Angle: 180 degrees, 270 degrees, 360 degrees.
• Drive Mode: PWM.
• Pulse Width Range: 500-2500us.
• Control Accuracy: 3us.
• Size: 402040.5mm.
• Weight: 60g.
• Steering Gear Connection: Red positive, brown negative, orange signal (or red positive, black negative, white signal).

DS3230 Main Parameters

• Voltage: 5-6.5V.
• Blocked Rotor Current: 3A.
• Controllable Angle: 180 degrees, 270 degrees, 360 degrees.
• Drive Mode: PWM.
• Pulse Width Range: 500-2500us.
• Control Accuracy: 3us.
• Size: 402040.5mm.
• Weight: 60g.
• Steering Gear Connection: Red positive, brown negative, orange signal (or red positive, black negative, white signal).
